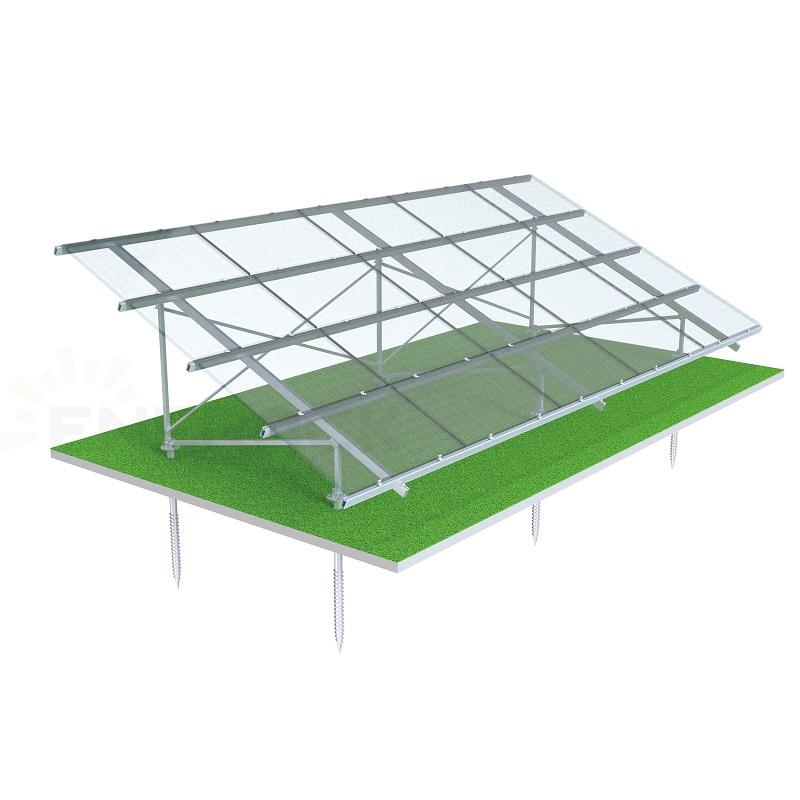

All-aluminum standard ground solar mounting system

Aluminum ground mount, optimized for lightweight,quick and efficient installation with flexible on engineering upon site conditions. Optional on foundation by ground screw or concrete. Maximize pre-assembled before shipment.

Technical features:

Product name: Standard ground mounting system;

Application: Flat concrete roof, open terrain;

Inclination: Customized;

Material: AL6005-T5, SUS304, Q235;

Finish: AL 6005-T5 Anodized, Q235 Hot-dip galvanizing;

Module orientation: Landscape or Portrait.

Depending on the different design conditions, pre-assembly support is generally designed into the following two shapes:

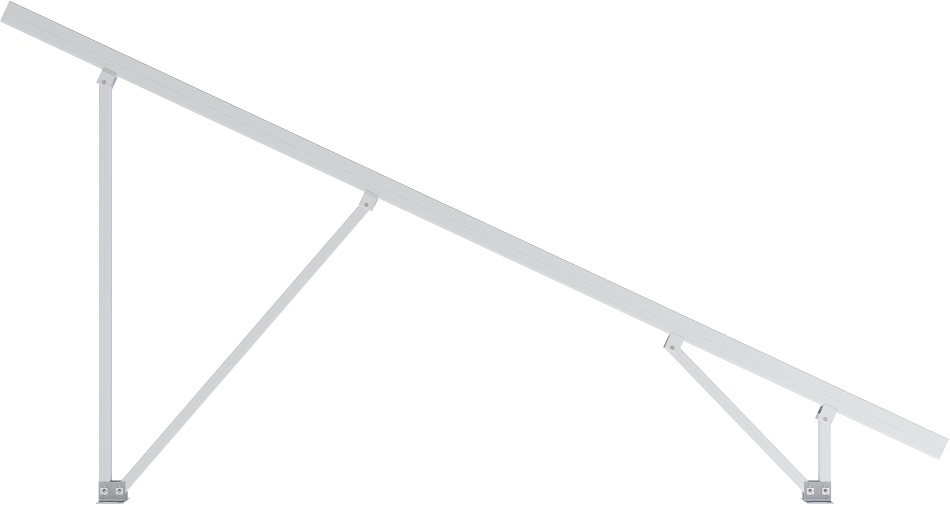

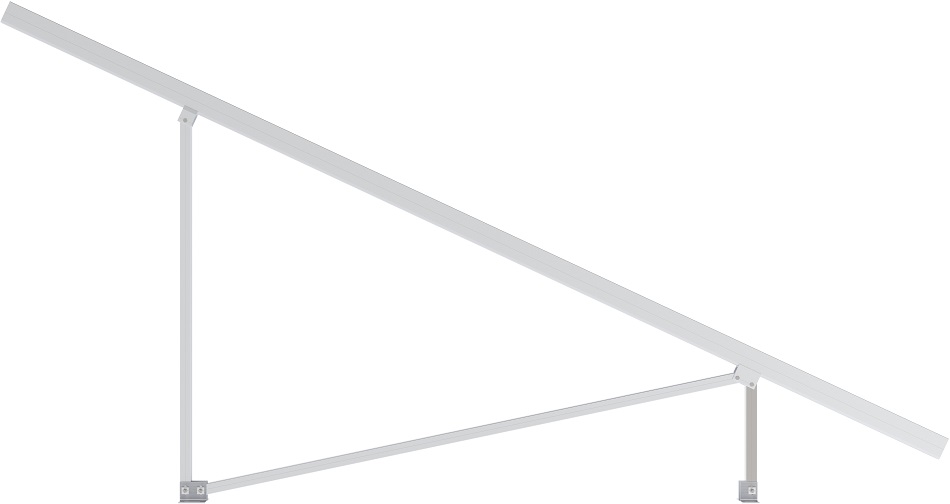

The N-Type pre-assembly support is mainly used for the small wind & snow load condition projects. (2-4 columns)

The W-type pre-assembly support is mainly for the 4-5 columns wind & snow load condition projects. We will add cross support to make the structure stronger if the ground height is higher or wind & snow load is larger.

Ground mounting 60mm H support (ERK-CH2-01)

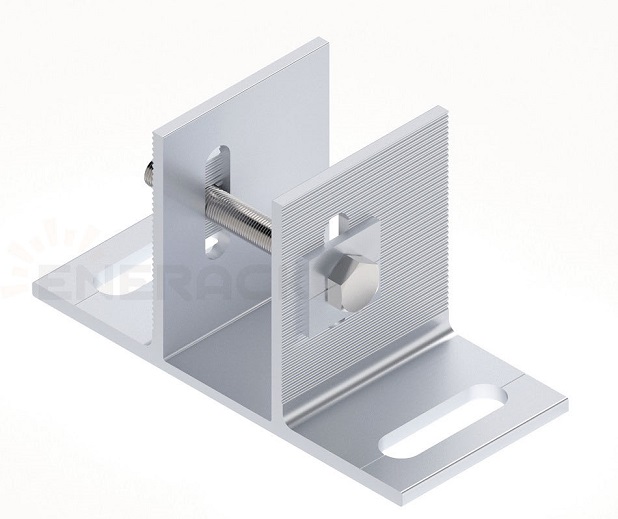

Ground mounting 70mm base (ERK-GB2-01)

Ground mounting 100mm H support (ERK-CH2-02)

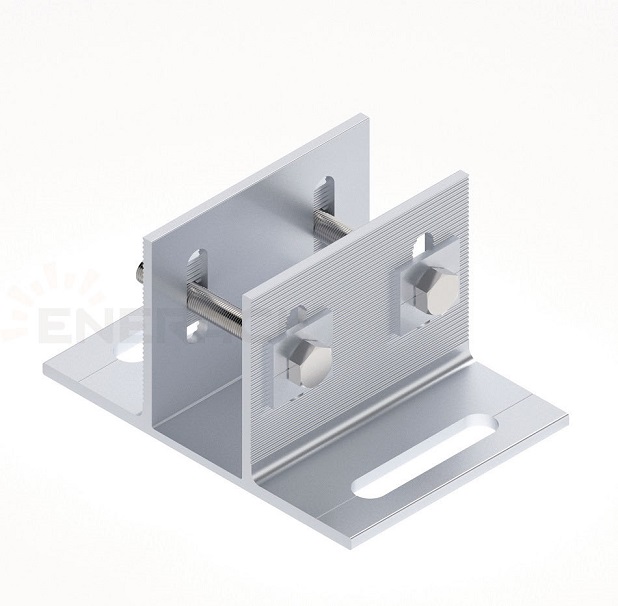

Ground mounting 110mm base (ERK-GB2-02)

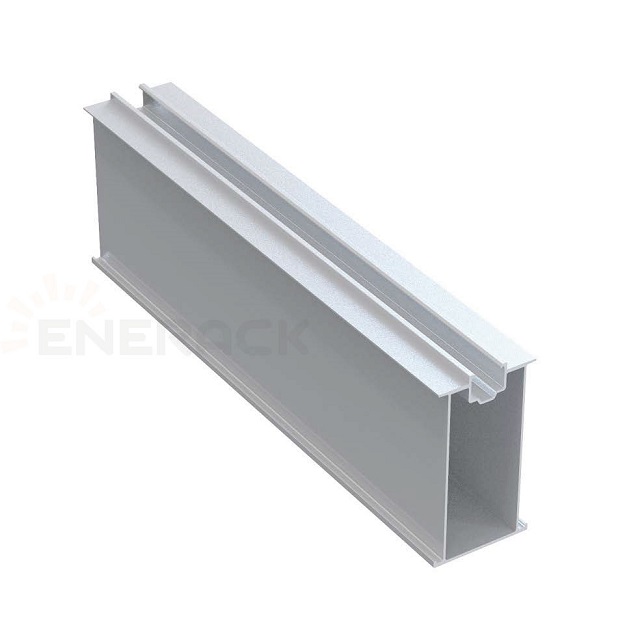

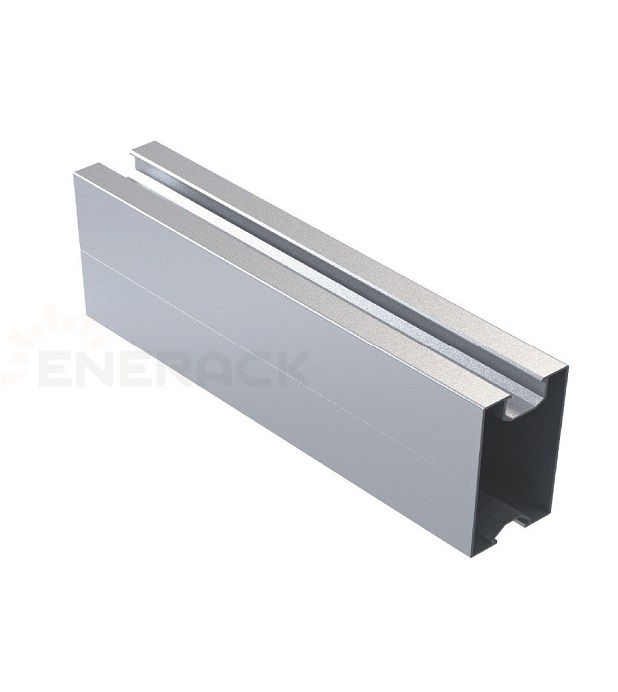

Ground mounting 80mm rail (ERK-R80)

Ground mounting 95mm beam (ERK-B95)

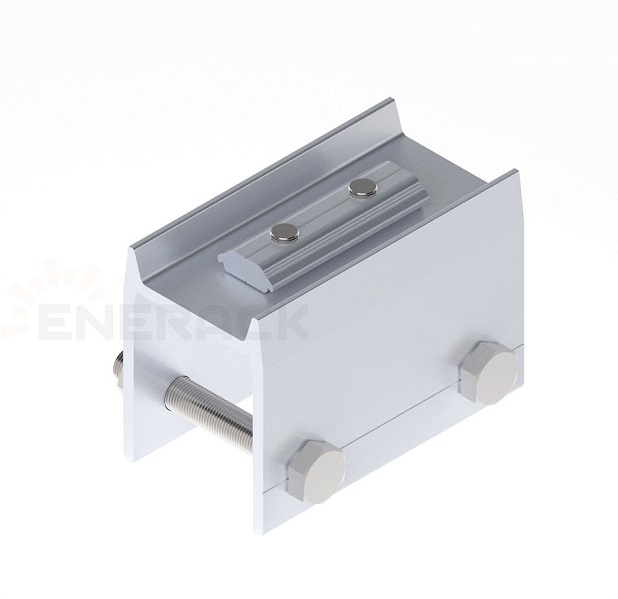

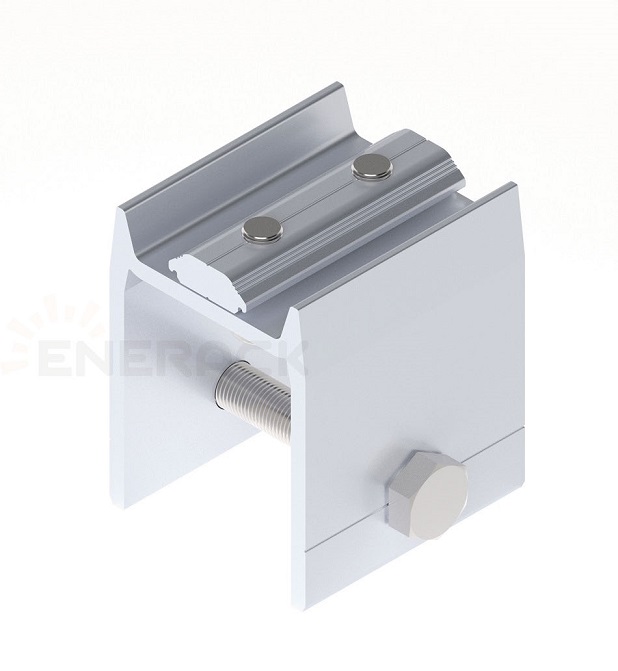

Rail clamp (ERK-GRC)

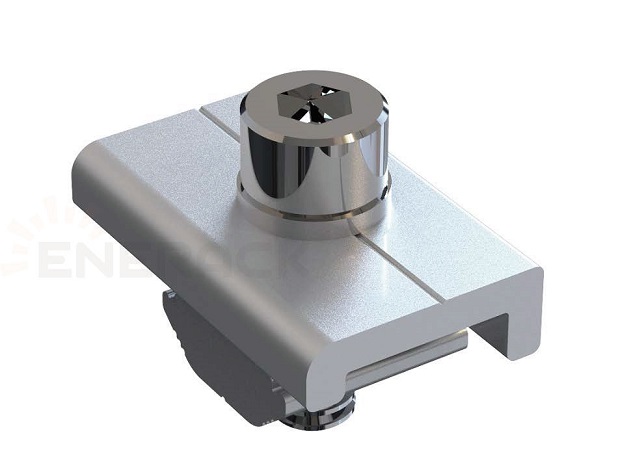

Mid clamp (ERK-GIC)

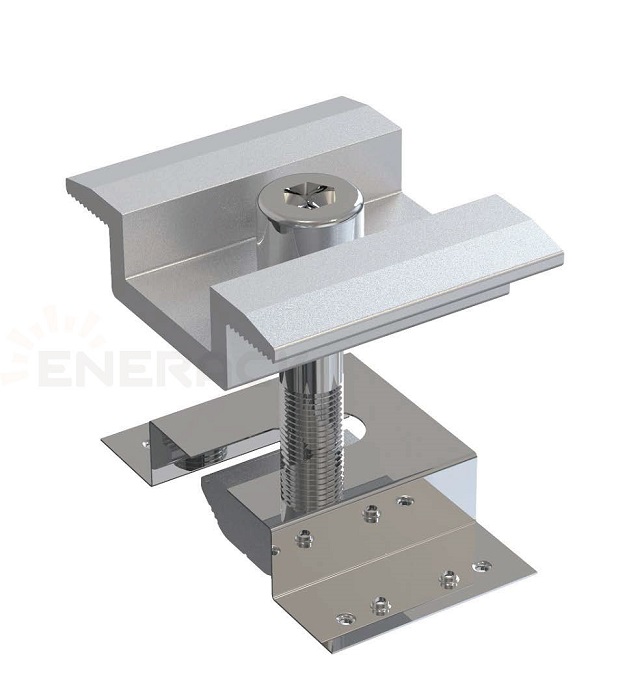

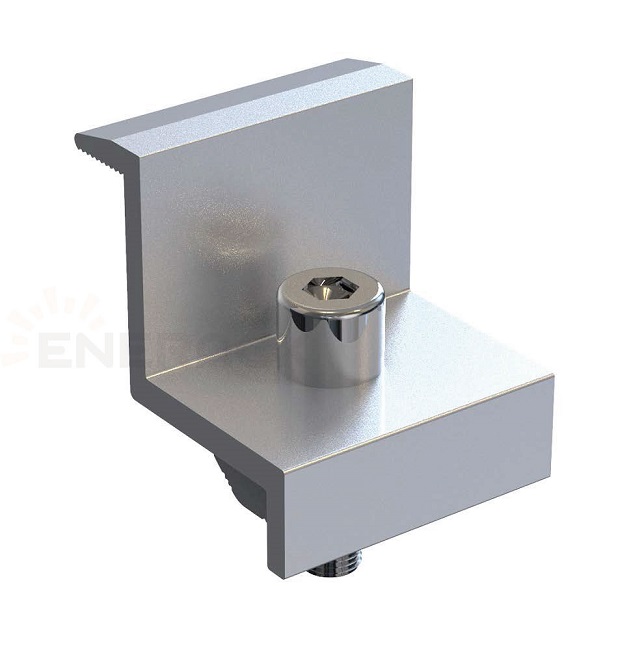

End clamp (ERK-GEC)
