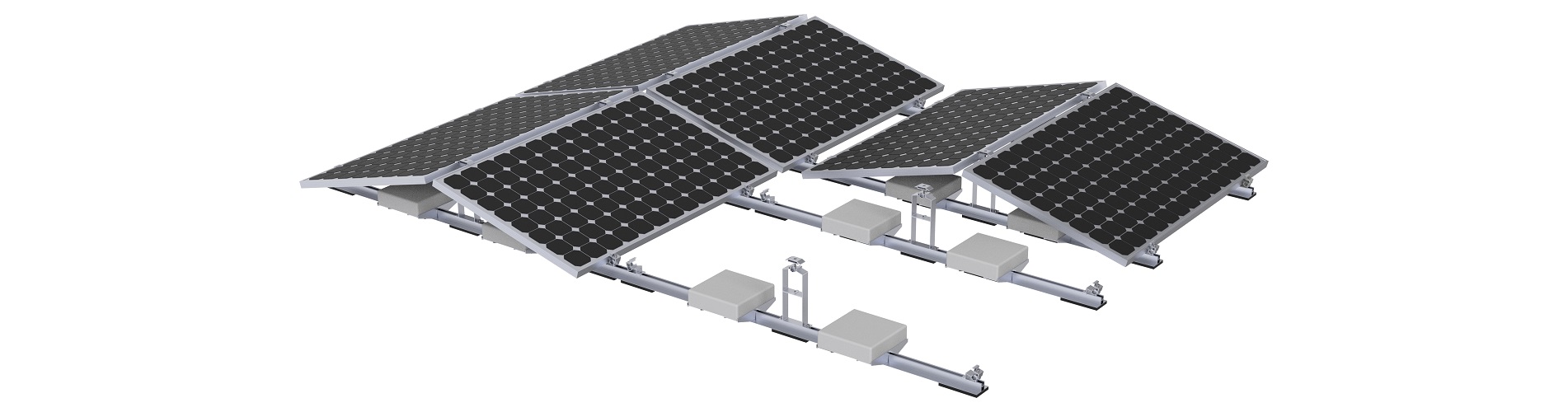

Ballasted-Ult East-West integrated rear leg is suitable for the Ballasted-Ult Systems East-West layout installation, it has the same advantages as Ballasted-Ult Systems, can be installed in any position on the long side of the solar panels. Maximize to realize the strength of solar panels against the wind load and snow load.

East-West integrated rear leg support simplify the number of installation, making it more easy and convenient, more efficient and faster, can effectively reduce the cost of whole project.

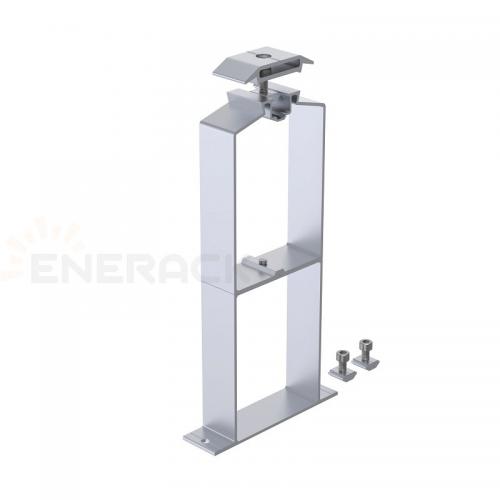

Innovative rear leg inner clamp  is more convenient for installation and make the whole systems more integrated, there are two choice 10 degree and 15 degree for your choose, compatible with ERK-BUF-10 and ERK-BUF-15.

Technical features:

Product name: Ballasted-Ult East-West integrated rear leg;

Application: Concrete flat roof or trapezoidal sheet metal roof;

Tilt: 10°or 15°;

System material: AL6005-T5, EPDM;

Fastener material: SUS 304;

Standard: TUV, UL 467, UL 2703, EN 1090 EXC 2 (system 2+), AS/NZS1170.2 etc;

Finish: Anodized;

Module orientation: Landscape.
