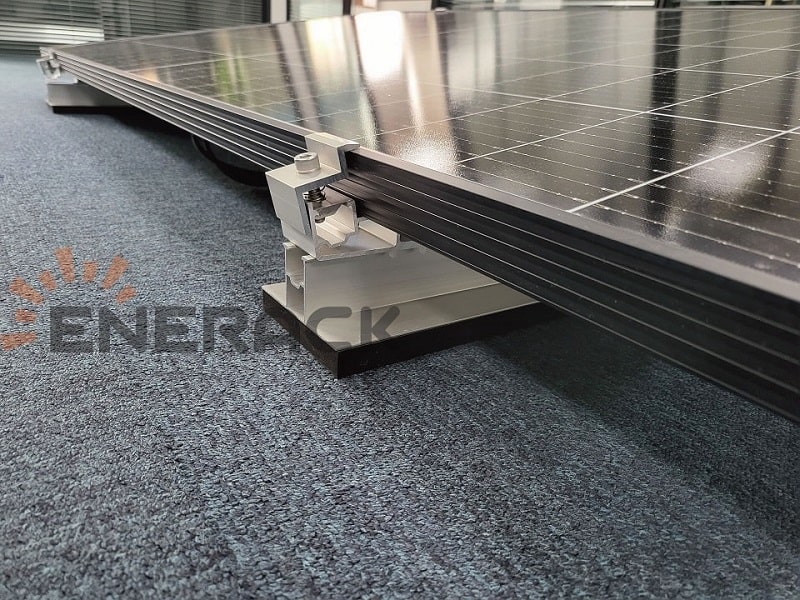

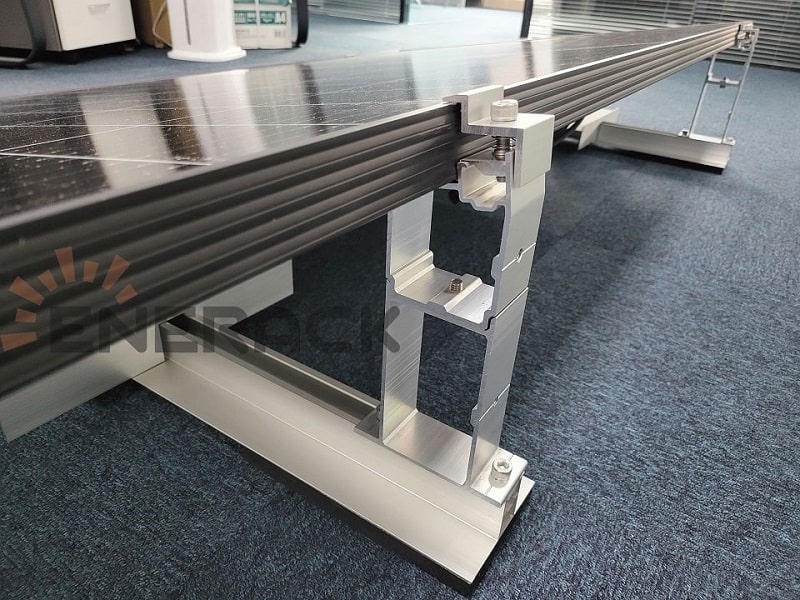

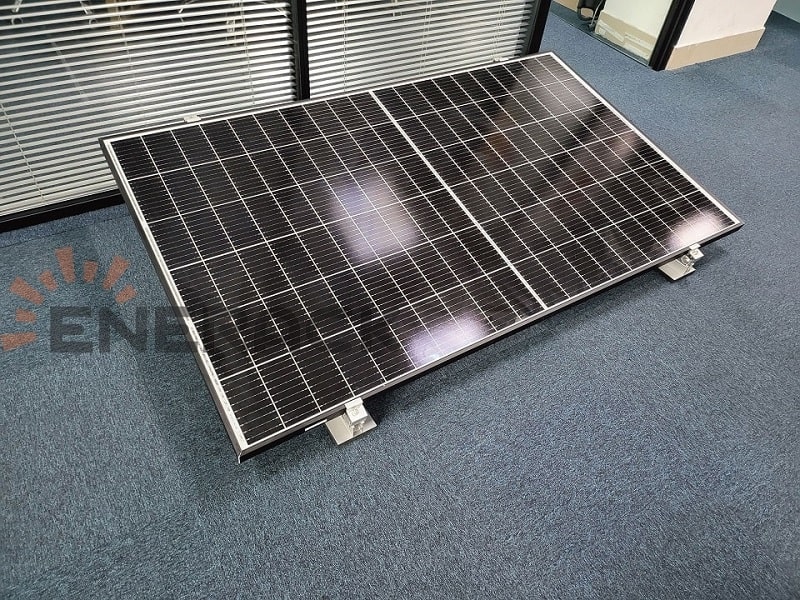

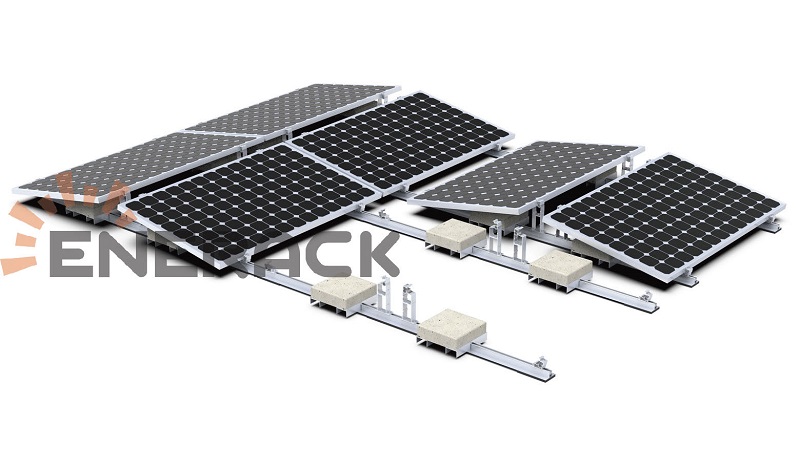

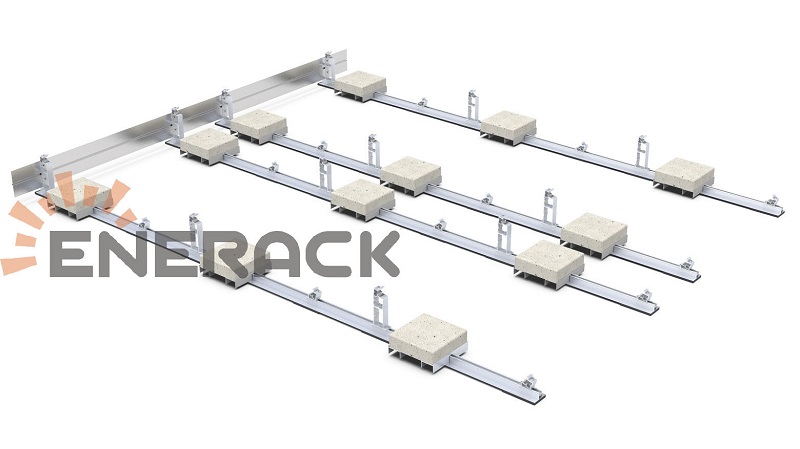

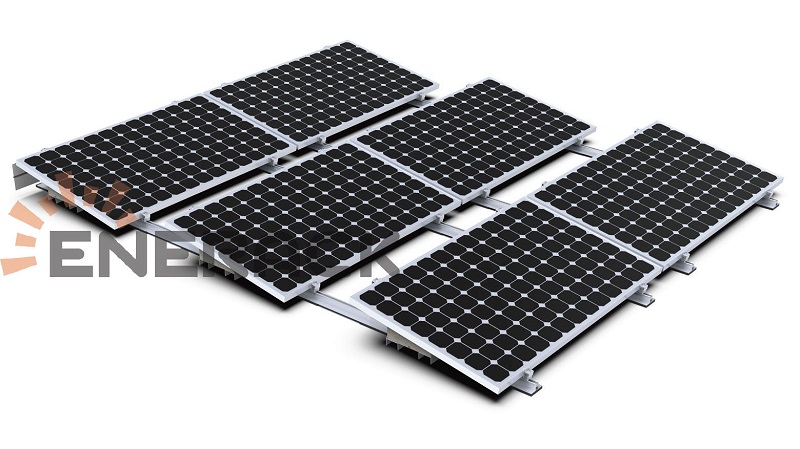

Enerack East & West Ballasted-Ult Systems suitable for concrete flat roof and trapezoidal sheet metal roof. Unlike the traditional solar panel fixing method, whose fixing point at the end of the long side of the panel, this series help solar panels to be fixed anywhere on the long side. Therefore, solar panels could withstand greater wind and snow pressure. There is no need to use expansion bolts or chemical bolts on the roof, no damage to roof. The system connects all the panels with the rails into a whole. East-west facing panels have a great effect on resisting wind loads. A combination of high quality aluminium components make a robust, reliable system and quick and easy installation.
Product Feature:
Solar panels could withstand greater wind and snow pressure.
Maximal area utilized.
Maximal PV quantity installed.
Maximized roof space utilized, and PV quantity installed.
Better panel output.
Solar PV to be fast and easily installed on a flat roof with 10 tilt degree inclination.
All parts are made of extruded aluminum, with stainless steel 304 fasteners.
EPDM foam tape is installed at the bottom of the system, separated the roof and system.
EPDM foam tape provides better friction and compensates for the height difference when the roof is uneven.
Product Overview:
Product name: Ballasted-Ult Series

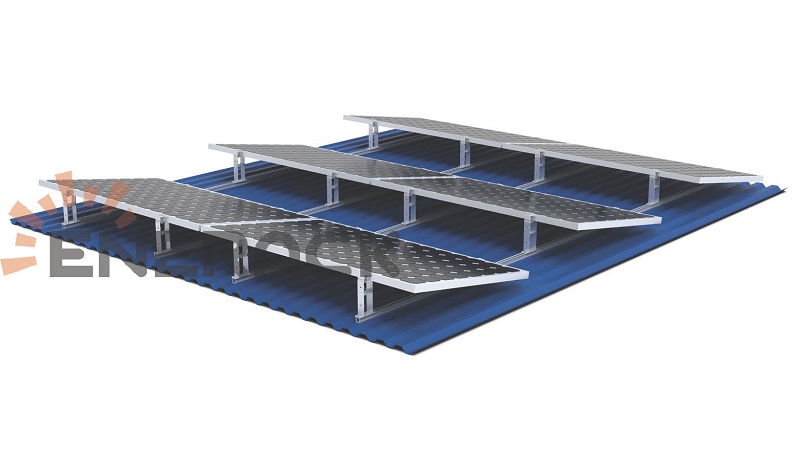

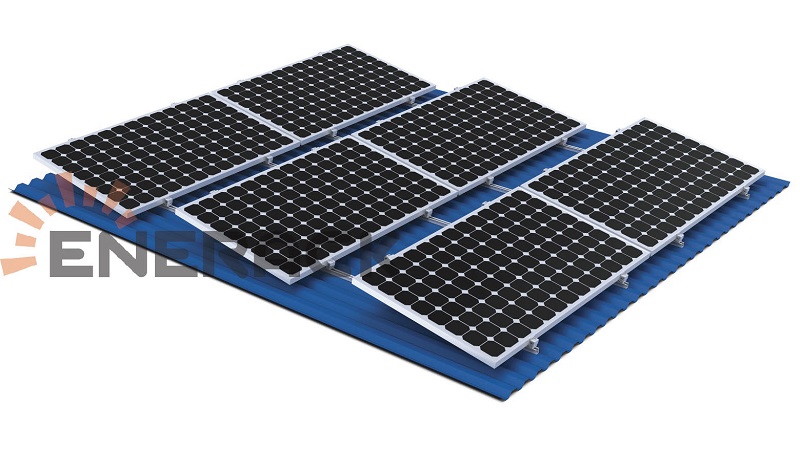

Application: Concrete flat roof and trapezoidal sheet metal roof
Tilt angle: 10°
System material: Extruded aluminum profile 6005 T5, EPDM
Fastener material: Stainless steel 304
Finish: Anodized
Module orientation: Landscape

Standards：AS/NZ1170.2、JIS C 8955、MCS 012、TUV、UL2703 etc.
